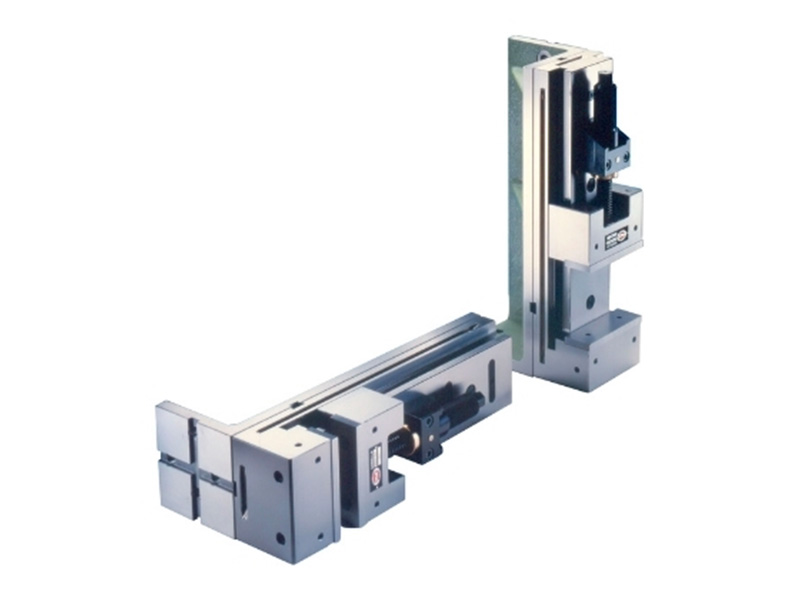

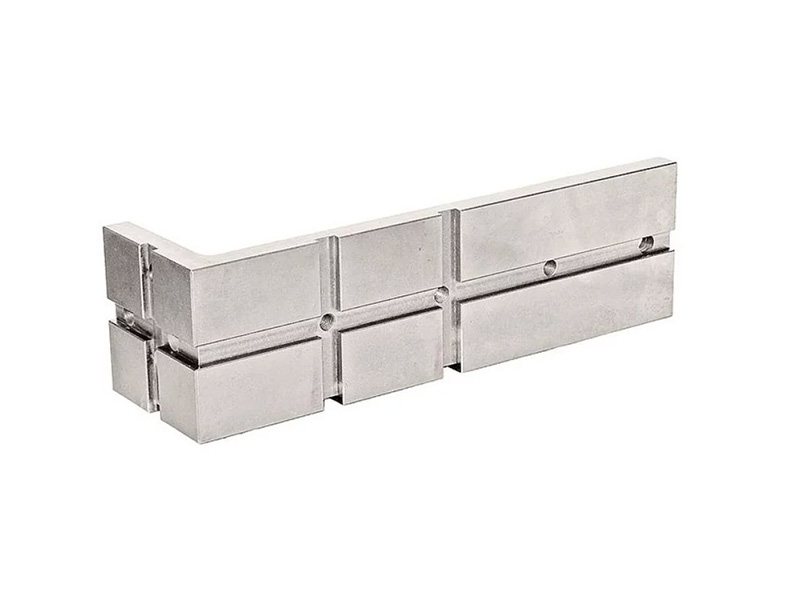

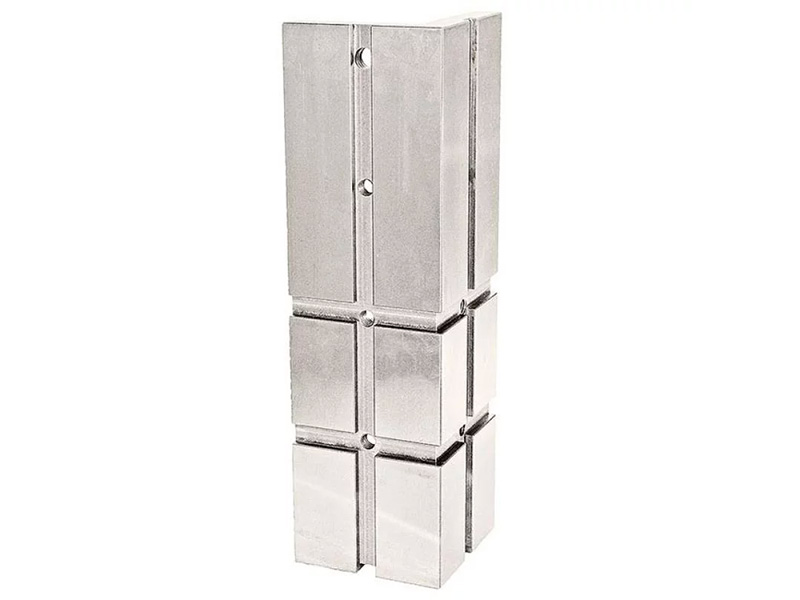

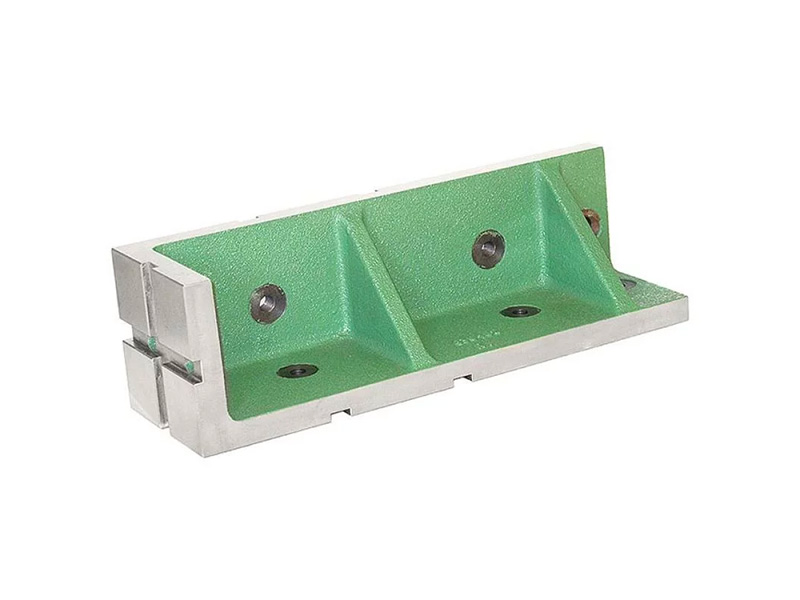

The three faces are accurately ground making it easy to fix the MU/90 and MUC/91 vices vertically or on their sides ensuring perfect geometric alignment thanks to the grooves on the bases.
The linear shape of the support makes it suitable for a wide variety of uses, even unusual ones, combined with the vices, such as the right-angled clamping of workpieces directly on the grinding or milling tables.
Technical data
Material: GS 600-3 cast iron UNI 4544
Breacking load: Rmin = 61
Elongation%: A% = 3
Brinell hardness: HB = 190÷270

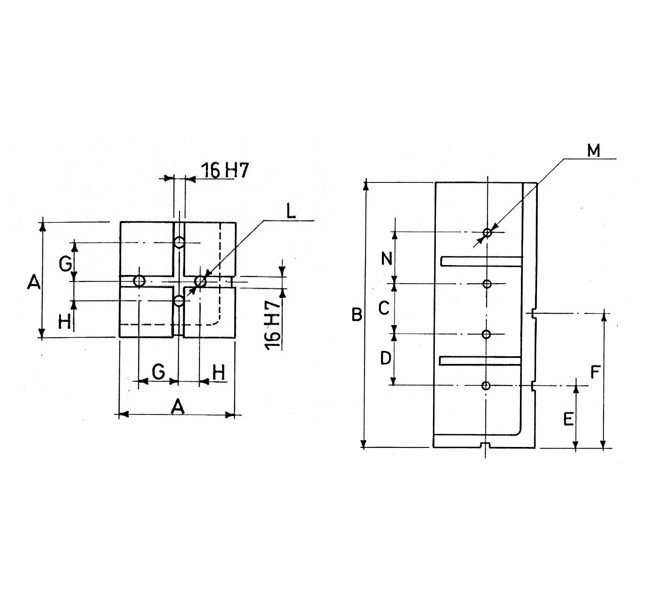

| TYPE | 100 | 125 | 150 | 175 300 - 400 | 200 300 - 400 - 500 |
|---|---|---|---|---|---|
| A | 101 | 126 | 151 | 176 | 201 |
| B | 345 | 430 | 520 | 510-630 | 520-620-700 |
| C | 119.5 | 100 | 100 | 100 | 100 |
| D | 100 | 100 | 100 | 100 | 100 |
| E | 100.5 | 110.5 | 120.5 | 130.5 | 140.5 |
| F | 172.5 | 215 | 260 | 315.5 | 350.5 |
| G | 33 | 42 | 55 | 60 | 70 |
| H | - | 22 | 35 | 40 | 50 |
| L | ø14.5 | ø14.5 | ø14.5 | ø14.5 | ø14.5 |
| M | ø12 | ø12 | ø12 | ø12 | ø12 |
| N | - | 94.5 | 100 | 100 | 100 |
| WEIGHT KG | 11 | 18 | 24 | 42 48 | 49 59 65 |
Note: Features and dimensions are subject to change.
NB: features and dimensions are not binding
