These are the same standard jaws normally installed on a vice but they are not casehardened and therefore can be shaped according to the pieces to be machined.
Different thicknesses other than the standard one can be supplied on request. All faces are ground.
Tipology:
Mechanical
Technical data
Material: UNI C45 steel
| TYPE | 80 | 100 | 110 | 125 | 130 | 150 | 175 | 200 |
|---|---|---|---|---|---|---|---|---|
| A | 82 | 99.5 | 112 | 124.5 | 132 | 149.5 | 174.5 | 199.5 |
| B | 29.6 | 39.6 | 39.5 | 49.6 | 39.6 | 49.6 | 49.6 | 49.6 |
| C | 7.5 | 9.5 | 9.5 | 11.5 | 9.5 | 11.5 | 11.5 | 11.5 |
| D | 40 | 56 | 65 | 65 | 88 | 88 | 102 | 110 |
| E | 40 | 56 | 65 | 65 | 88 | 88 | 102 | 110 |
| F | M6 | M8 | M10 | M10 | M10 | M10 | M10 | M10 |
| G | 12.5 | 16.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| H | 6.5 | 8.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
Note: Features and dimensions are subject to change.

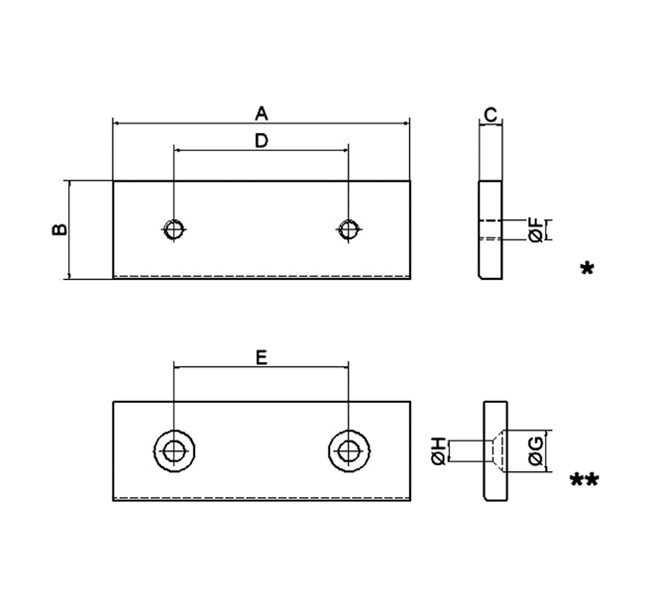

*Fixed jaw
**Moving jaw
